細胞定位格子培養皿-80156 80151 81166 81161
- 產品價格：詢價
- 產品品牌：德國ibidi
- 產品型號：80156 80151 81166 81161
- 產品規格：盒
- 產品類型：細胞定位格子培養皿-80156 80151 81166 81161
- 咨詢熱線：021-57790908 / 57790918
-
-
細胞定位格子···
產品簡介
ibidi細胞定位格子培養皿µ-Dish 35mm Grid-500
產品特點
產品參數
技術特征：
1.直徑為35mm標準樣式的培養皿；

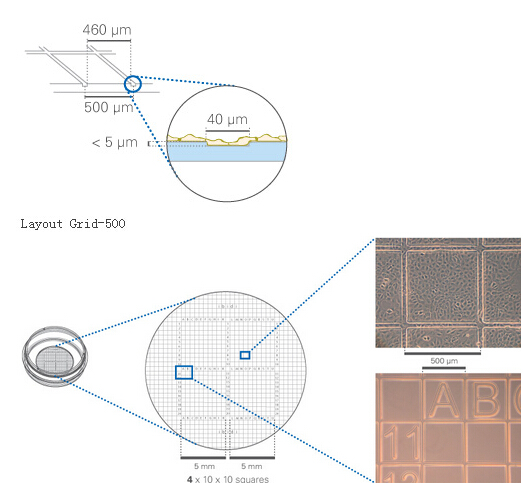

2.具500µm 網格刻度；
3.字母或數字標記(A-U; 1-20)；
4.替代選擇的玻璃底部產品：µ-Slide 35 mm, high glass bottom with Grid-50 or with Grid-500；
5.獨特的 ibiTreat 組織培養處理表面適合大多數細胞的貼壁生長；
6.生物相容性材料制作，不含膠水，無細胞毒性影響；
7.特殊的蓋部設計，減小液體揮發。
產品規格：
Grid repeat distance | 500 µm | Growth area | 3.5 cm2 |
Ø µ-Dish | 35 mm | Growth area | 21 mm |
Volume high / low | 2 / 0.8 ml | Height with lid high / low | 14 / 9 mm |
底部 | Ibidi標準底 | ||
Lid with Lock Position
The special lock feature in all ibidi µ-Dishes enables the user to minimize evaporation. The lock position provides excellent conditions for long term studies in non humidified environments. Gas exchange (carbon dioxide, oxygen) during cell culture is maintained thanks to the gas permeable plastic material of the dish.
TIP: Use the locking feature only if minimal evaporation is
required, i.e., outside incubators, non humidified microscopy stages, etc.

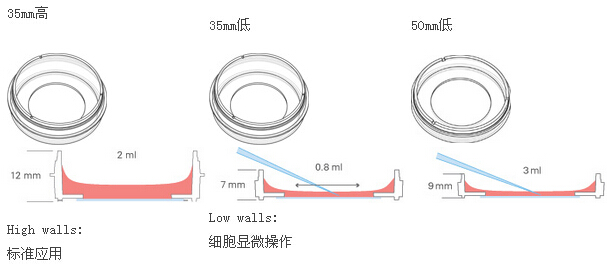

ibidi µ-Dish Family: Versions and Variations
ibidi Standard Bottom vs. ibidi Glass Bottom
Optical properties | ||
Refractive index (nD 589 nm) | 1.52 | 1.52 |
Abbe number | 56 | 55 |
Thickness | #1.5 (180 µm) | #1.5 (170 µm) |
Material | Microscopy plastic | D 263M Schott borosilicate glass |
Autofluorescence | Low | Low |
Transmission | Very high (even ultraviolet) | High (ultraviolet restrictions) |
Birefringence (DIC) | Low (DIC compatible*) | Low (DIC compatible*) |
Other aspects | ||
Surface modifications | ibiTreat – tissue culture treated Uncoated – hydrophobic | Only pure glass |
Protein coatings | Possible | Possible |
Gas permeable | Yes | No |
Material flexibility | High | Low |
Breakable | No | Yes |
Recommended for | All kinds of fluorescence microscopy | TIRF and single photon |
基本配置
35mm具500um網格刻度 ibidi標準底部的培養皿
貨號 | 產品名稱 | 規格（個/盒） |
81148 | µ-Dish 35 mm,高壁，玻璃底，50微米格子培養皿 | 30 |
81168 | µ-Dish 35 mm,高壁，玻璃底，500微米格子培養皿 | 30 |
80156 | µ-Dish 35 mm,低壁，ibiTreat底部處理，500微米格子培養皿 | 60 |
80151 | µ-Dish 35 mm,低壁，無包被，500微米格子培養皿 | 60 |
81166 | µ-Dish 35 mm,高壁，ibiTreat底部處理，500微米格子培養皿 | 60 |
81161 | µ-Dish 35 mm,高壁，無包被，500微米格子培養皿 | 60 |
